High-Temperature Furnaces with SiC Rod Heating up to 1600 °C

Heating times of 25 - 30 minutes can be achieved, depending on the furnace model and the conditions of use.

These powerful laboratory muffle furnaces are available for temperatures up to 1550 °C or 1600 °C. The durability of the SiC rods in periodic use, in combination with their high heating speed, make these high-temperature furnaces to all-rounders in the laboratory. Heating times of 25 – 30 minutes can be achieved, depending on the furnace model and the conditions of use.

Standard Equipment

Tmax 1550 °C or 1600 °C
Working temperature 1500 °C, increased wear and tear must be expected in case of working at higher temperatures
Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)

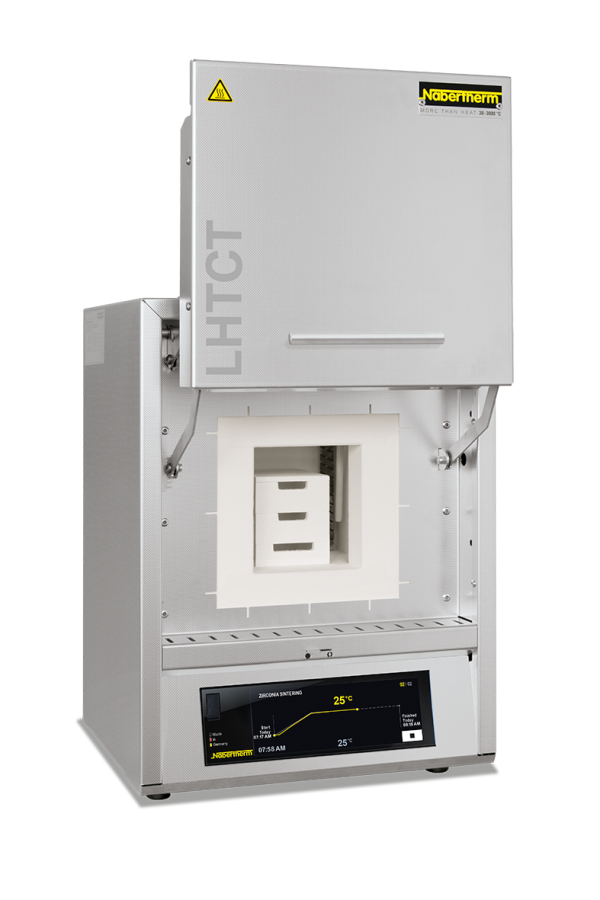

Optional flap door (LHTC) which can be used as work platform or lift door (LHTCT) with hot surface facing away from the operator (High-temperature furnace LHTCT 01/16 only with lift door)
Switching system with solid-state-relays, power tuned to the SiC rods
Easy replacement of heating rods
Adjustable air inlet opening, exhaust air opening in the roof
Controller with touch operation C550 (10 programs with each 20 segments)
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Additional Equipment

Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
Protective gas connection to purge with non-flammable process gases, not gas tight
Manual or automatic gas supply system
Process control and documentation via VCD software package for monitoring, documentation and control
